Single phase mini din rail kwh activity meter with pulse output
meter reading

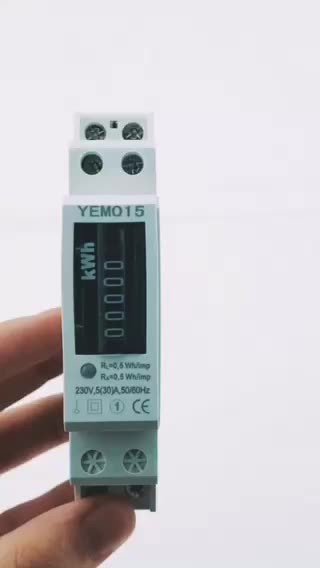

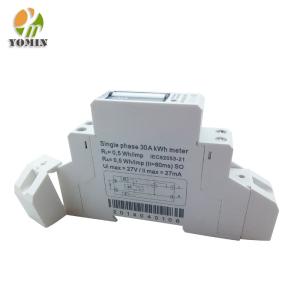

Model YEM015SS single phase electronic DIN rail active energy meter
is a kind ofnew style single phase two wire active energy meter, it adopts
micro-electronicstechnique, and imported large scale integrate circuit, uses
advanced techniqueofdigital and SMT techniques, etc. It has its completely independent
intellectualproperty rights and minimum size. It has already passed the test of
theinternational authority KEMA. The meter completely accords with
relevanttechnical requirements of class 1 single phase active energy meter
stipulated ininternational standard IEC 62053-21. It can accurately and directly
measure 50Hzor 60Hz active energy consumption from single phase AC electricity
net, it candisplay total energy consumption by step motor type impulse
register. It hasfollowing features: good reliability, small volume, light weight,
speciousappearance, convenient installation, etc.
Features
35mm standard DIN rail installation, complying with standard DIN
EN50022.
Single pole width (Modulus 17.5mm), complying with standard
DIN43880.
Standard configuration 6+1 digits display (999999.1kWh) by step
motor type impulse register.
Standard configuration pulse output passive (polarity),May select
distant pulse output passive ( nonpolarity). And contact with all
kind of AMR system conveniently,Complying with standard
IEC 62053-31 and DIN 43864.
Bicolor LED instructions power supply state (green) and signal of
energy impulse (red).
Automatic detection the direction of the flow of load current. And
instructions (Only red energy impulse signal when working,If no
green instructions power supply, that is meaning the direction of
the flow of load current reverse).
Single direction measurement single phase two wire active power
consumption. It is nothing with direction of the trend of load
current. Complying with standard IEC 62053-21.
Directly connect and use, there are two types wiring you may
select. Standard configuration type S connection.May select type U
connection(Product Configuration code is US).
Extension terminals cover, in order to protect to use safety.
Technical parameters
Model
Accuracy
Reference Voltage
Current specifications(A)
Starting current(A)
Insulation
performance
YEM015SS
Class1.0
127V,230V
5(30)A
0.02A
AC voltage 4KV for 1 minute,1.2/50us waveform impulse voltage 6KV
Dimension and wiring
1 Where is your factory?
Our factory is located in Qiaoqian Industry Area, Liushi Town,
Yueqing City, Zhejiang Province, 325603 China.
2 Are you manufacturer or business?
We are manufacturer established in 2002, and have over 16 years
production experience.
3. Can I ask for samples?
Yes
4. What's the warranty of your products?
18 months
5. What's the lead time?
Depend on the quantity and model of the order, normally it takes
around 2-3 days, but the exact lead time should be discussed with
our sales.
6. How about the MOQ, Payment term, Delivery port, and shipping
date?
Yueqing Yomin Electric Co., Ltd (Before called Yueqing Yomin
Electric Factory, found in 1996) is a manufacturer of electric
appliances with well-equipped testing equipment and strong
technical force.With a wide range, good quality, reasonable prices
and stylish designs, our products are extensively used in
electrical industry and other industries.Our products are widely
recognized and trusted by users and can meet continuously
developing economic and social needs.We welcome new and old
customers from all walks of life to contact us for future business
relationships and achieving mutual success!
