Type YEM011TG single phase electronic DIN rail active energy meter
is a kind of new style single
phase two wire active energy meter, it adopts micro-electronics
technique, and imported large scale
integrate circuit, uses advanced technique of digital and SMT
techniques, etc. The meter completely
accords with relevant technical requirements of class 1 single
phase active energy meter stipulated in
international standard IEC 62053-21. It can accurately and directly
measure 50Hz or 60Hz active
energy consumption from single phase AC electricity net, it can
display total energy consumption by
step motor type impulse register. It has following features: good
reliability, small volume, light weight,
specious nice appearance, convenient installation, etc.
Functions

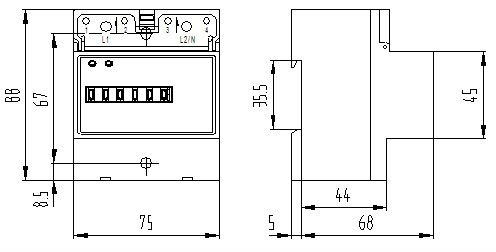

1. 35mm standard DIN rail installation, complying with standard DIN
EN50022. Or front board setting
(mounting holes center distance 67 mm), users can choose any one by
themselves.
2. Six pole width (Modulus 12.5mm), complying with standard JB/T7121-1993.
3.5+1 digits display (99999.1kWh) by step motor type impulse register.
4. Standard configuration one port of pulse output passive(polarity),May select increase a distant port
of pulse output passive (nonpolarity), (Product Configuration code is TI). And contact with all kind of
AMR system conveniently,Complying with standard IEC 62053-31 and DIN 43864.
5. Two LED instructions power supply state (green) and signal of energy impulse (red).
6. Standard configuration don’t detection direction of the flow of load current. May select automatic
detection the direction of the flow of load current. And instructions (Only red energy pulse signal when
working, that is meaning the direction of the flow of load current reverse).
7. Single direction measure single phase two wire active energy consumption. It is nothing with direction
of the flow of load current. Complying with standard IEC 62053-21.
8.may select type S wiring (Product Configuration code is AG).
9. Standard configuration short terminals cover, may select
extension terminals cover, in order to
protect to use safety. (Product Configuration code is TH).
