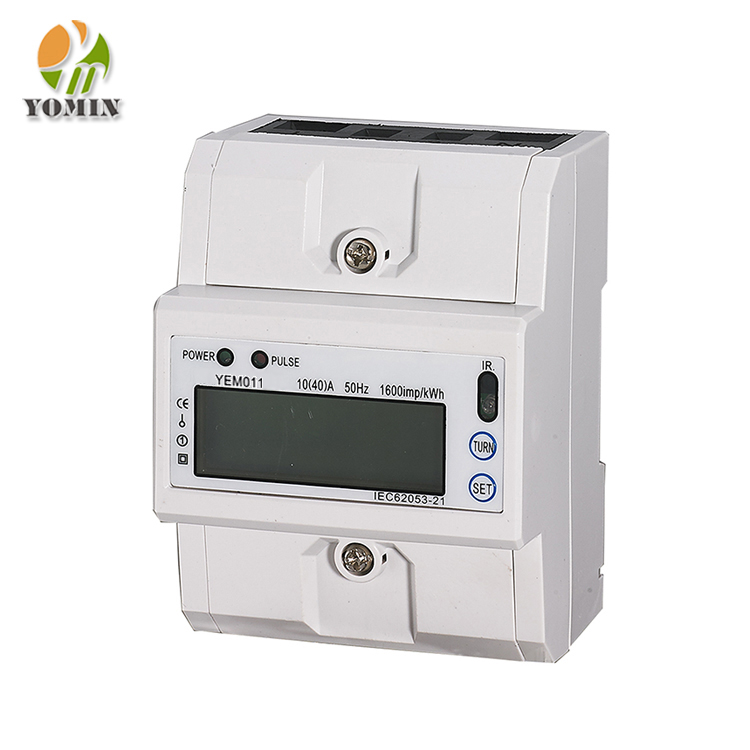

    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    Ask Lasest Price
    Brand Name : TOMIN
    Model Number : YEM011
    Price : $13.98/Pieces 1-10 Pieces
    • Product Details
    • Company Profile

    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485


    Environmental Indicators:

    Working Humidity≤ 75%
    Storage Humidity≤ 95%
    Operating Temperature-10°C - +50°C
    Storage Temperature-30°C - +70°C
    International standardIEC 62053-21
    Domestic StandardGB/T17215.321-2008
    Accuracy Class1
    Dustproof and WaterproofIP 51
    Protective Insulation Encapsulation Type

    Technical Parameters and Display Type:


    ModelLCD Display
    Reference Voltage (Un)220V 230V 240V
    Operating Voltage181/279V AC (3~)
    Rated Current (Ib)2.5 5A 10A 15A 20A 30A
    Maximum Current (Imax)10A 20A 40A 60A 80A 100A
    Starting Current≤0.004b(Direct Access)
    Withstand Overload Current30Imax 0.01s
    Working Frequency50Hz±10%
    Internal Power Consumption≤2W / 10VA
    Pulse Constant1000imp
    RS485 Port23(A) and 24(B)
    Data Storage Time>20 Years

    Model

    Accuracy

    Reference

    Voltage(V)

    Current

    specifications(A)

    Starting

    current(A)

    Insulation

    performance

    YEM011GC

    Class 1

    127

    230

    5(30)

    10(50)

    20(100)

    0.02

    0.04

    0.08

    AC voltage 4kv for 1 minute,

    1.2/50us waveform impulse voltage 6kv


    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    Terminals

    Note

    L

    Phase line

    N

    Neutral line (Inlet from bottom, outlet from top)

    3 and 4

    Port of pulse output passive


    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485


    1 Where is your factory?

    Our factory is located in Qiaoqian Industry Area, Liushi Town, Yueqing City, Zhejiang Province, 325603 China.

    2 Are you manufacturer or business?

    We are manufacturer established in 2002, and have over 16 years production experience.

    3. Can I ask for samples?

    Yes

    4. What's the warranty of your products?

    18 months

    5. What's the lead time?

    Depend on the quantity and model of the order, normally it takes around 2-3 days, but the exact lead time should be discussed with our sales.

    6. How about the MOQ, Payment term, Delivery port, and shipping date?

    1)MOQ: 100 pcs/item based on existing packing.

    2)T/T-30% deposit and 70% against copy of BL

    3)L/C is also acceptable

    4)Ningbo/Shanghai


    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    Din Rail Single Phase Digital Electronic Meter/Energy Meter With RS485

    single phase 1P

    No Mudbus

    single phase 2P

    Mudbus

    single phase 4P

    Mudbus

    three phase

    Mudbus
